Mounting the Aera 760 and GDL 52 in N9148W

The Aera 760 is the upgrade to the Aera 796.  It does, however, require the addition of the GDL 52 to get SMX Weather and Audio, and ADS-B Weather and Traffic.  While the 796 had a small “puck” for XM Weather and Audio, the 760 requires the larger GDL 52 to get the addition of the ADS-B functionality.  Since I didn’t want the distraction of having it on the glareshield, I had the wires run to a suction cup mount that I placed on  the side window.  If you want correct attitude information, it should be mounted such that the antenna faces forward.


UPDATE: The side window suction cup mounting didn't work.  Probably due to the slightly curved window, the unit was constantly falling off the window.  I reverted back to putting the unit on the co-pilot's side of the glareshield with acceptable results.

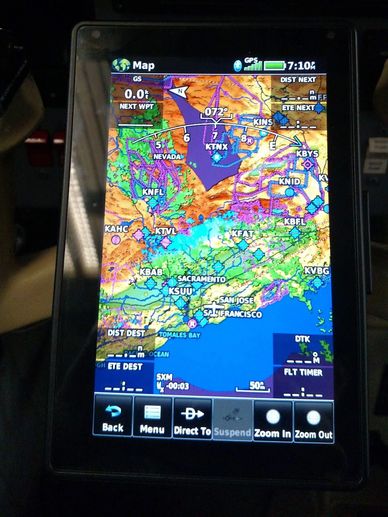

                Aera 760 Pilot View

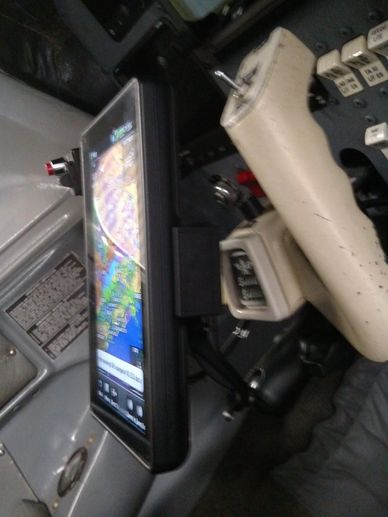

              Aera 760 Profile View

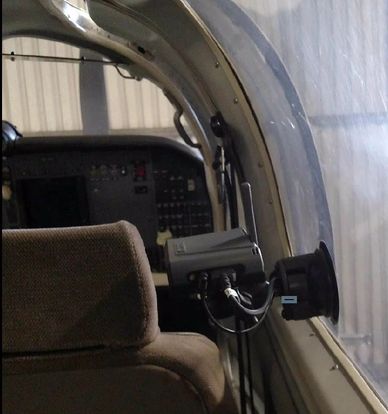

       GDL 52 Side Window Mounting 1

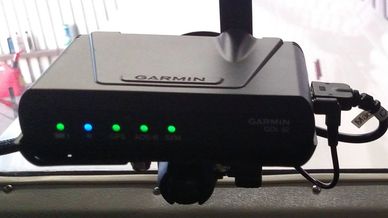

Profile View Orientation

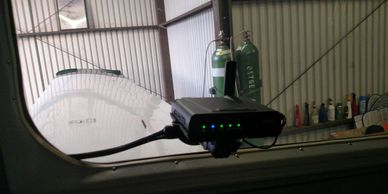

              Side Window Mounting 4

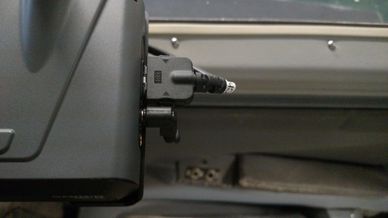

  Closeup of Audio and Data Connections
